2 3 4 5 8 Pole Screw Less Push Power Wire Connector 450V / 600V

Brand Name : Tianrui

Model Number : P01-M2, P01-M3, P01-M4, P01-M5, P01-M8

Certification : VDE CQC

Place of Origin : China

MOQ : 5000pcs

Price : Negotiable

Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc

Supply Ability : 1000000PCS per Month

Delivery Time : 5-7 work days

Packaging Details : PE bag, Bulk

Product Name : Screw Less Push Power Connector

Rated Current : 24A

Rated Voltage : 450V/600V

Type : Push Wire Connectors

Connection Mode : Push-Pull Connection

Connector Type : Composite Electric Connector

Product Process : Injection Molding

Pole : 2 Poles, 3 Poles, 4 Poles, 5 Poles, 8 Poles

Shape : Rectangle

Connector Usage : Power Connection

Contact Now


2 3 4 5 8 Pole Screw Less Push Power Wire Connector


1. Product name : Screw Less Push Power Connector
2. Part number: P01-M2, P01-M3, P01-M4, P01-M5, P01-M8

3. Type : Push-in Wire Connectors

4. Connection Mode : Push-Pull Connection
5. Connector Type : Composite Electric Connector

6. Product Process : Injection Molding

7. Pole: 2 3 4 5 8 Pole

8. Shape: Rectangle

9. Usage: Power Connection

Features of 2 3 4 5 8 Pole Screw Less Push Power Wire Connector

Push-in wire connecctor with good retaining force
For solid wire/stranded wire/tinned flexible wire
Transparent housing for visual inspection of connection
Interlock housing for orderly installation
Colour-coded for easy identification

P01-M2 2 Poles Screw Less Push Power Wire Connector

Item no P01-M2
Electrical Data
IEC/EN
Rated Voltage (V) 450
Rated Current (A) 24
Ambient Temperature polycarbonate T60
Connection Data
IEC/EN
Cross Section Solid conductor 0.5-2.5mm²
Strip length (mm) 11
Means of connection push in
Rewirable √
Number of terminals single
Number of connection points 2
Materials
Insulation Materials Designation Polycarbonate Polypropylene
Flammability class UL 94V-2
Packing Quantity (pcs/carton)
10000

2 3 4 5 8 Pole Screw Less Push Power Wire Connector 450V / 600V

2 3 4 5 8 Pole Screw Less Push Power Wire Connector 450V / 600V

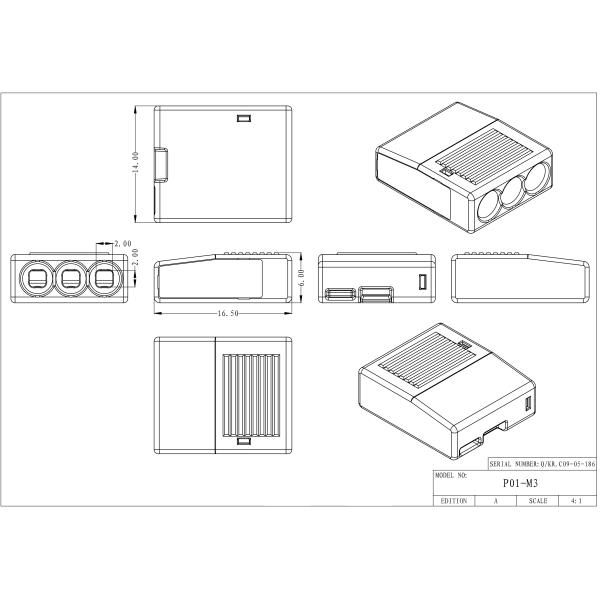

P01-M3 3 Poles Screw Less Push Power Wire Connector

Item no P01-M3
Electrical Data
IEC/EN
Rated Voltage (V) 450
Rated Current (A) 24
Ambient Temperature polycarbonate T60
Connection Data
IEC/EN
Cross Section Solid conductor 0.5-2.5mm²
Strip length (mm) 11
Means of connection push in
Rewirable √
Number of terminals single
Number of connection points 3
Materials
Insulation Materials Designation Polycarbonate Polypropylene
Flammability class UL 94V-2
Packing Quantity (pcs/carton)
6000

2 3 4 5 8 Pole Screw Less Push Power Wire Connector 450V / 600V

2 3 4 5 8 Pole Screw Less Push Power Wire Connector 450V / 600V

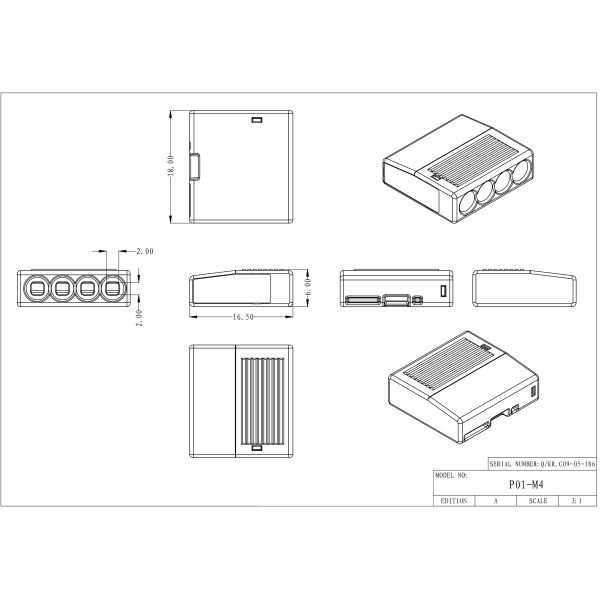

P01-M4 4 Poles Screw Less Push Power Wire Connector

Item no P01-M4
Electrical Data
IEC/EN
Rated Voltage (V) 450
Rated Current (A) 24
Ambient Temperature polycarbonate T60
Connection Data
IEC/EN
Cross Section Solid conductor 0.5-2.5mm²
Strip length (mm) 11
Means of connection push in
Rewirable √
Number of terminals single
Number of connection points 4
Materials
Insulation Materials Designation Polycarbonate Polypropylene
Flammability class UL 94V-2
Packing Quantity (pcs/carton)
6000

2 3 4 5 8 Pole Screw Less Push Power Wire Connector 450V / 600V

2 3 4 5 8 Pole Screw Less Push Power Wire Connector 450V / 600V

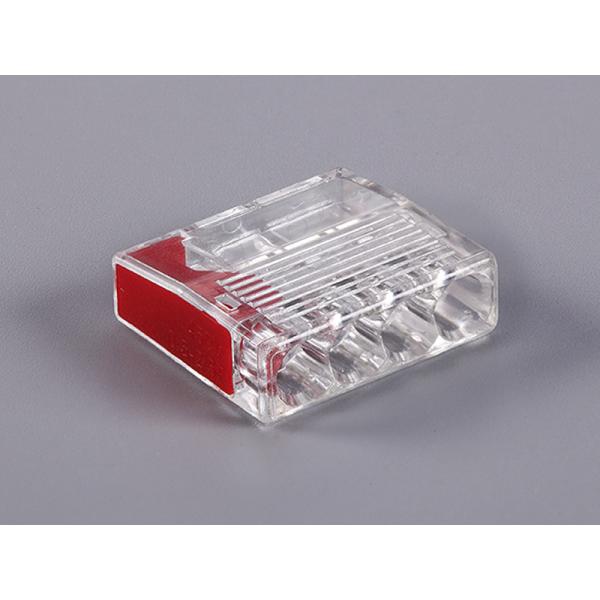

P01-M5 5 Poles Screw Less Push Power Wire Connector

Item no P01-M5
Electrical Data
IEC/EN
Rated Voltage (V) 450
Rated Current (A) 24
Ambient Temperature polycarbonate T60
Connection Data
IEC/EN
Cross Section Solid conductor 0.5-2.5mm²
Strip length (mm) 11
Means of connection push in
Rewirable √
Number of terminals single
Number of connection points 5
Materials
Insulation Materials Designation Polycarbonate Polypropylene
Flammability class UL 94V-2
Packing Quantity (pcs/carton)
6000

2 3 4 5 8 Pole Screw Less Push Power Wire Connector 450V / 600V

2 3 4 5 8 Pole Screw Less Push Power Wire Connector 450V / 600V

P01-M8 8 Poles Screw Less Push Power Wire Connector

Item no P01-M8
Electrical Data
IEC/EN
Rated Voltage (V) 450
Rated Current (A) 24
Ambient Temperature polycarbonate T60
Connection Data
IEC/EN
Cross Section Solid conductor 0.5-2.5mm²
Strip length (mm) 11
Means of connection push in
Rewirable √
Number of terminals single
Number of connection points 8
Materials
Insulation Materials Designation Polycarbonate Polypropylene
Flammability class UL 94V-2
Packing Quantity (pcs/carton)
3000

2 3 4 5 8 Pole Screw Less Push Power Wire Connector 450V / 600V

2 3 4 5 8 Pole Screw Less Push Power Wire Connector 450V / 600V
